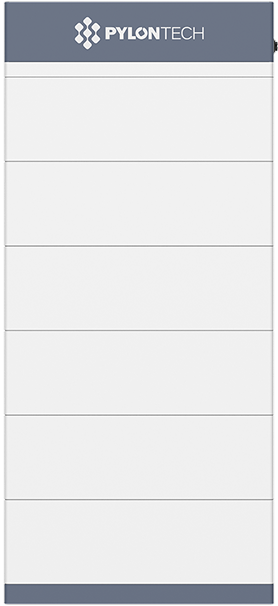

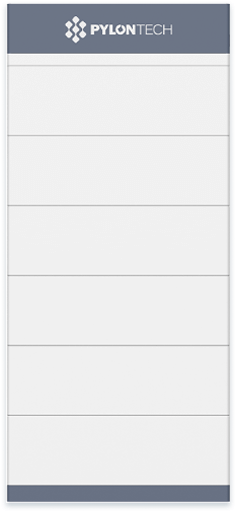

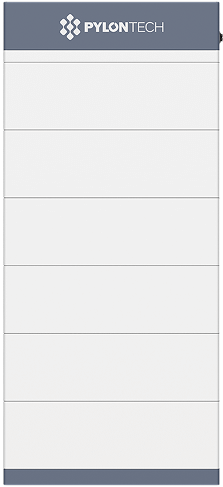

Why choose PYLONTECH Force H3 Battery?

  • Modular and scalable design
  • High efficiency and reliability
  • Scalability
  • High efficiency
  • Long service life
  • Widely Compatible
  • User-friendly monitoring
  • User-Friendly Installation
Trusted Solar For Home Australia

WANT TO TALK WITH BATTERY EXPERT?

Energy-efficient house with solar panels during rain

Get
Blackout
Protection

Eco-friendly charged batteries indicating renewable energy

Independence
Power
Everything

Solar investment growth with flower in pot

Improves overall
savings by
Sonnen System

CEC approved Solar Installer Australia
  • I Want a Free Quote
  • I Want Easy Payment Option

Get Australia’s Best Seller
Packages

  • Premium Brands “No Compromise”
  • Tier-1 Solar Panel
  • Local Warranty Support Available
  • Hassle-Free Installation

Easy Payment Plans Available

  • Up to 24 Months Finance Available
  • Fast & Easy Process
I was referred to Solar Secure by a friend or family member

PYLONTECH BATTERY FAQS

Everything you need to know before choosing a PYLONTECH Solar Battery
  • Q: What is the lifespan of a Pylontech Force H3 battery?
    The Force H3 is rated for > 8,000 cycles at 95% depth of discharge (DoD) and ~25 °C ambient. The design life is quoted as 15+ years under the same nominal conditions (25 °C, regular cycling).
  • Q: Are Pylontech Force H3 battery compatible with all solar inverters?
    No, the Pylontech Force H3 battery is not automatically compatible with all solar inverters. Whether it will work in your system depends on matching several key electrical and communication parameters.
  • Q: Can I expand the storage capacity of my Pylontech Force H3 battery system?
    Yes, A tower can consist of 2 to 6 Force-H3 5.12 kWh battery modules, allowing for a storage capacity of 10.24 to 35.8 kWh. Thanks to the new H3 series, up to 6 towers can now be operated in parallel in a single system.
  • Q: What safety features do Pylontech Force H3 battery offer?
    The Force H3 uses LiFePO₄ cells, which are inherently safer than many other lithium chemistries, because they have greater thermal stability and are less prone to thermal runaway. The unit has an IP55 rating (dust-protected, protection from water jets) suitable for indoor / covered-outdoor use. The Force H3 meets many international safety standards, such as IEC62040-1/IEC62477-1/IEC62619/IEC63056/UL1973/UL9540A/UN38.3/VDE-AR-E 2510-50
  • Q: What is the warranty period offered for the Pylontech Force H3?
    The Pylontech  Force H3 battery system is covered by a standard 10-year product warranty, starting from the earlier of the installation date or twelve months after manufacture.
  • Q: What makes Pylontech Force H3 battery different from other solar battery brands?
    The Force H3 is designed as a high-voltage system (e.g., system voltages from ~204.8 V up to ~716.8 V depending on module count) by stacking its 102.4 V modules. The higher voltage architecture allows compatibility with hybrid inverters designed for high-voltage DC, reducing current for a given power and potentially improving wiring/engineering efficiency. you can start with two modules (10.24 kWh) and expand up to 7 modules in a string (35.84 kWh) and then parallel strings. This flexibility means the Force H3 can cater from smaller residential to larger applications, with the same module build. Also, it is certified with multiple global certifications - UL1973, UL9540A, IEC62619, IEC63056, UN38.3 etc. These make it a strong pick for reliability, safety, and regulatory compliance.
