Introduction
The quest for sustainable energy solutions has never been more critical, and solar power is at the forefront of this revolution. Among the many solar panel options available, Jinko's Tiger Neo N-Type 440W mono-facial modules stand out as a reliable and efficient choice. In this blog, we'll delve into the details of these impressive panels and explore what makes them a standout choice for your solar energy needs.

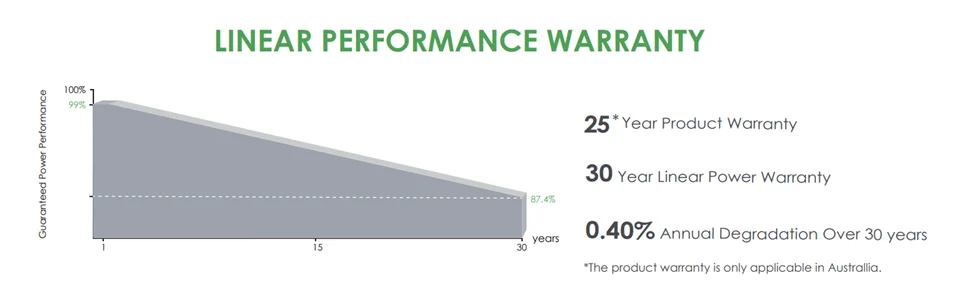

Warranty that Speaks of Quality
One of the first things that draw attention to the Jinko Tiger Neo N-Type 440W panels is their warranty. These panels come with a robust warranty package:
25 Years Product Warranty:
This ensures peace of mind by covering any defects in the product for a quarter of a century.
30 Years Linear Power Warranty:
The panels guarantee consistent performance, and this warranty covers any drop in power output over 30 years.
0.40% Annual Degradation Over 30 Years:
With minimal annual degradation, these panels continue to perform efficiently over time.
It's important to note that the product warranty is applicable in Australia, ensuring that customers Down Under can trust in the longevity and reliability of these panels.
Mechanical Characteristics
The mechanical characteristics of the Jinko Tiger Neo N-Type 440W panels are designed for durability and performance.
Cell Type : These panels feature N-Type Mono-Crystalline cells known for their high efficiency and durability.
Number of Cells : With 108 cells arranged in a 6x18 configuration, they offer a balance of size and performance.
Dimensions : The panels measure 1722x1134x35mm, making them compact yet powerful.
Weight : At 22kg, they are relatively lightweight and easy to install.
Front Glass : The 3.2mm tempered glass with an anti-reflective coating ensures high transmission and low iron content, maximizing energy absorption.
Frame : Anodized Aluminium Alloy frame provides strength and stability.
Junction Box : The IP68 rated junction box guarantees protection against the elements.
Output Cables : TUV 1x4.0mm output cables are designed for safety and efficiency.
Fire Rating : Class C rating ensures fire safety.
Specifications of Jinko Tiger Neo N-TYPE 440W Panels
The performance specifications of the Jinko Tiger Neo N-Type 440W panels are equally impressive:
Maximum Power : These panels can produce an impressive 440W of power, making them suitable for a wide range of applications.
Maximum Power Voltage : 32.81V allows for efficient power conversion.
Maximum Power Current : 13.41A ensures robust energy production.
Open-Circuit Voltage : 39.38V provides a safety buffer for the system.
Short-Circuit Current : 13.86A indicates the panel's efficiency in extreme conditions.
Module Efficiency : At 22.53%, these panels are highly efficient at converting sunlight into electricity.
Operating Temperature : With a temperature range from -40°C to +85°C, they can perform well in extreme weather conditions.
Jinko’s wind speed Resilience
Jinko Tiger Neo N-Type 440W panels are designed to withstand wind speeds of up to 1m/s, making them suitable for a variety of geographic locations.
FREQUENTLY ASKED
QUESTIONS
-
How do Jinko solar panels compare to other leading panel brands in terms of efficiency?Jinko solar panels are known for their high efficiency, which means they can convert more sunlight into electricity. While the exact efficiency may vary between models, Jinko panels often outperform many other leading panel brands. This higher efficiency translates to more energy production for your home or business, making Jinko panels an attractive choice for those looking to maximize their solar investment.
-
Can I trust Jinko solar panels in challenging weather conditions?Yes, you can trust Jinko solar panels to perform well in challenging weather conditions. These panels are designed and tested to withstand extreme temperatures, high winds, and other environmental factors. With their robust build and high-quality materials, Jinko panels offer reliability and durability, ensuring your solar system continues to operate efficiently even in less-than-ideal weather.
-
What environmental benefits come with choosing Jinko solar panels?By choosing Jinko solar panels, you're making an environmentally responsible decision. Jinko is committed to sustainability throughout their manufacturing process. Their panels not only harness clean, renewable energy but also contribute to reduced carbon emissions and a greener future. By installing Jinko panels, you're actively participating in the global effort to combat climate change and reduce the carbon footprint associated with energy production.
-
How do Jinko panels maintain efficiency over time, and what is their degradation rate?Jinko panels are designed for long-term performance. They come with a 30-year linear power warranty, which means they guarantee a minimal degradation rate over time. Jinko panels typically have a degradation rate of only 0.40% per year over 30 years, ensuring that you continue to enjoy efficient energy production for decades.
-
What makes Jinko's N-Type mono-crystalline cells more efficient compared to other cell types?Jinko's N-Type mono-crystalline cells are known for their superior efficiency due to their high purity and advanced manufacturing processes. These cells have fewer defects, which means they can convert a higher percentage of sunlight into electricity. This efficiency advantage results in more power generation from the same panel size, making them a premium choice for those who want to maximize their energy production.
-
How does Jinko's anti-reflective coating enhance the efficiency of their panels?Jinko's use of an anti-reflective coating on the front glass of their panels is a key factor in boosting efficiency. This coating reduces the amount of sunlight that reflects off the panel's surface, allowing more light to be absorbed and converted into electricity. The result is higher overall energy yield, even in low light conditions, which is especially beneficial for locations with variable weather patterns.
We, at Solar Secure, take immense pride in being a NETCC Approved Solar Retailer in Australia. Our exclusive partnership with premium brands like Jinko has allowed us to consistently deliver on our promise of quality and reliability. The satisfaction of our customers is our ultimate goal, and we're delighted to hear that they're experiencing the benefits that Jinko's products claim to offer. As we continue to champion clean and sustainable energy solutions, our commitment to excellence remains unwavering. By choosing Solar Secure and Jinko, you're not just making a purchase; you're making a significant investment in a greener future.
At SOLAR SECURE®, We're More Than Just Solar Panels
We understand that every property and every customer is unique. That's why, at Solar Secure®, we go beyond simply offering products and services. We take the time to listen to your needs and requirements, and then we design a customized solar system tailored specifically to your property. Our goal is to make the transition to solar as smooth and efficient as possible, ensuring that you get the most out of your solar investment.
Your Partner in a Sustainable Future
In a world where clean, sustainable energy is not just an option but a necessity, Solar Secure® is your trusted partner in the transition to a greener and more cost-effective future. When you choose us, you're not merely installing solar panels; you're taking a significant step towards a cleaner, more sustainable, and financially savvy energy future.
Join the SOLAR SECURE® Family Today
We invite you to become a part of the Solar Secure® family today. Let's harness the power of the sun together and embark on a journey towards a more sustainable and environmentally responsible future. Your decision to switch to solar is more than a simple installation; it's a commitment to a cleaner, greener, and brighter energy future.
Conclusion
The Jinko Tiger Neo N-Type 440W mono-facial modules are a reliable and high-performance option for harnessing solar energy. With an impressive warranty, durable construction, and excellent technical specifications, these panels are ideal for homeowners, businesses, and anyone looking to embrace clean, sustainable energy solutions. Whether you're in Australia or any other region, Jinko's commitment to quality and performance is sure to shine with these panels. It's time to make the shift to solar power, and Jinko's Tiger Neo N-Type 440W panels are ready to lead the way.
